Strength. Versatility. Value
With over 20 years experience in manufacturing agricultural equipment. Chase MEE Mobile Grain Bins are designed and built by Titan Engineering (formerly Middle East Engineering -MEE). Developed with strength, versatility and value in mind, bin capacities range from 18 to 26 tonne.
The Chase MEE Mobile Grain Bin is renowned for its solid construction, use of heavy duty chassis channels and drawbars, as well as its 3mm steel plate panels which delivers a smoother line with less likelihood of corrosion, cracks and rattles.
The Two Compartment Bins For Seed and Super
This versatile option enables the farmer to utilise the bin for seeding and harvesting. By installing a removable division during manufacturing of the Chase MEE mobile bin. This operation is made easier for the farmer by the flow of separate products through the auger to the air seeder, using a cordless remote control.
Tandem Assembly with Rear Axle Steering
The Chase MEE dual axle bin offers the same easy maneuverability as the single system but possesses a number of unique benefits, including better weight distribution for large loads resulting in reduced soil compaction.
We use a German engineered tandem assembly built by BPW, which assure piece of mind and reliability.
+ Specifications
| Capacity | 23m3 | 27m3 | 33m3 | 35m3 |
|---|---|---|---|---|
| Total Length | 5.8m | 6.6m | 7.6m | 8.0m |
| Total Width | 3.5m | |||
| Total Height | 3.57m | |||
| Discharge Auger Diameter | 450mm | |||
| Discharge Auger Vertical Height | 4800mm | |||
| Discharge Auger Reach | 1600mm | |||
| Drive Type | PTO/HYD | |||
| Number of Axles | Single | Tandem | ||
| Wheels | 23.5x25 | 26.5x25 | 23.5x25 | |
+ Features & Benefits
- 5 mm floor plate and 3 mm side plate
- 18″ discharge auger
- Lower discharge chute
- 6mm segment fighting
- 540 RPM PTO drive
- Hydraulically controlled grain shut-off gates
- Roll tarp
- Easy swing away clean out doors
- Two-pack paint finish over a sand blasted surface
- 30 tonne axles and hubs
+ Optional Features
- Seed and fertiliser divisions
- Tandem assembly with Rear Axle Steering (RAS)
- Fire fighting equipment
- Floatation tyres

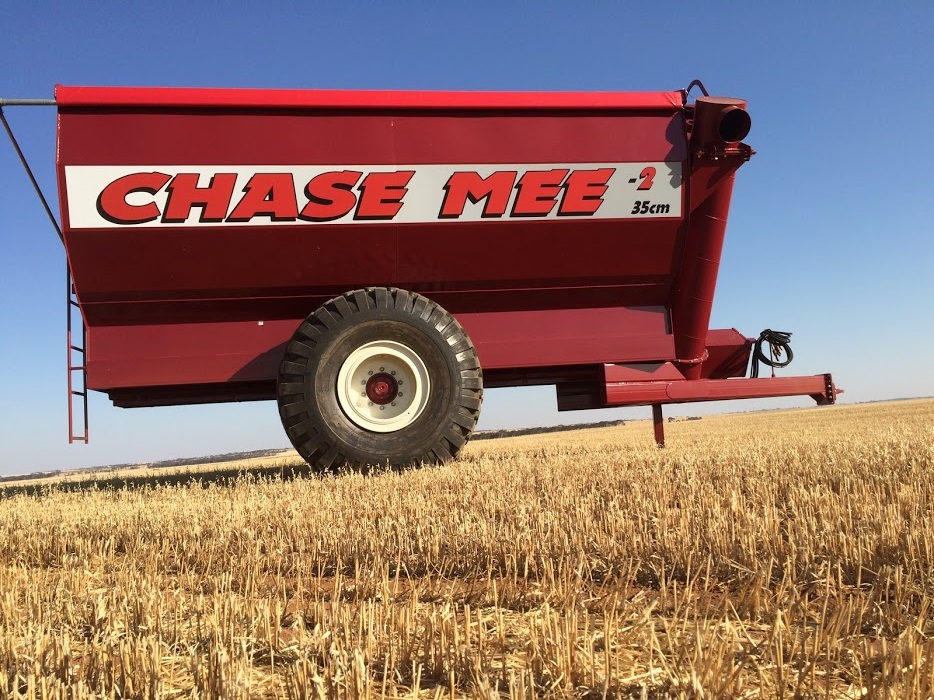

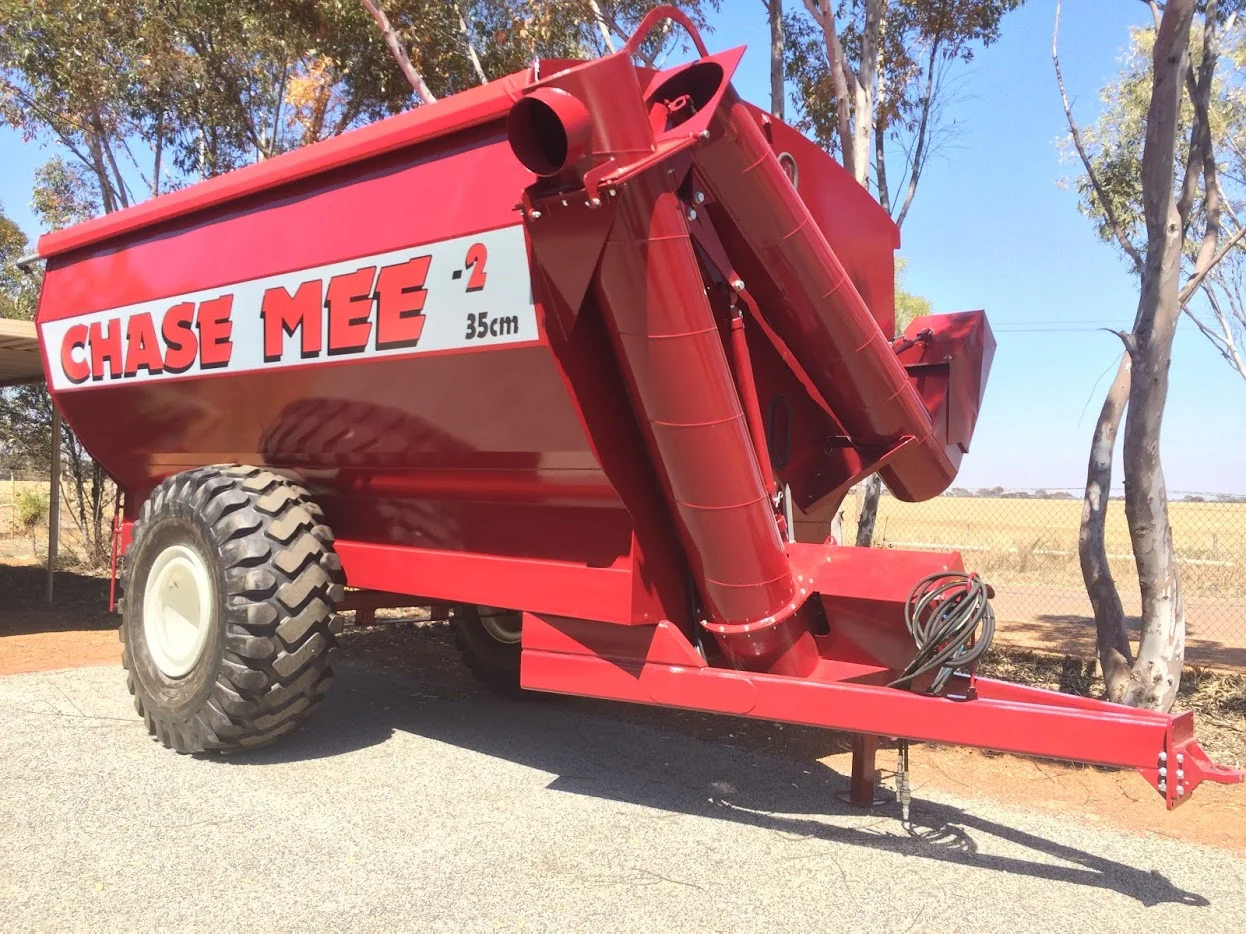

Chase MEE Mobile Grain Bins/Chaser Bins
Chase MEE Mobile Grain Bins in Action
